The Automatic Ring Stretch Wrapping Machine — also known as a Profile Wrapping Machine, Orbital Stretch Wrapping Machine, or Horizontal Ring Stretch Wrapping Machine — is specially designed for fast, secure, and efficient wrapping of long or irregularly shaped products.

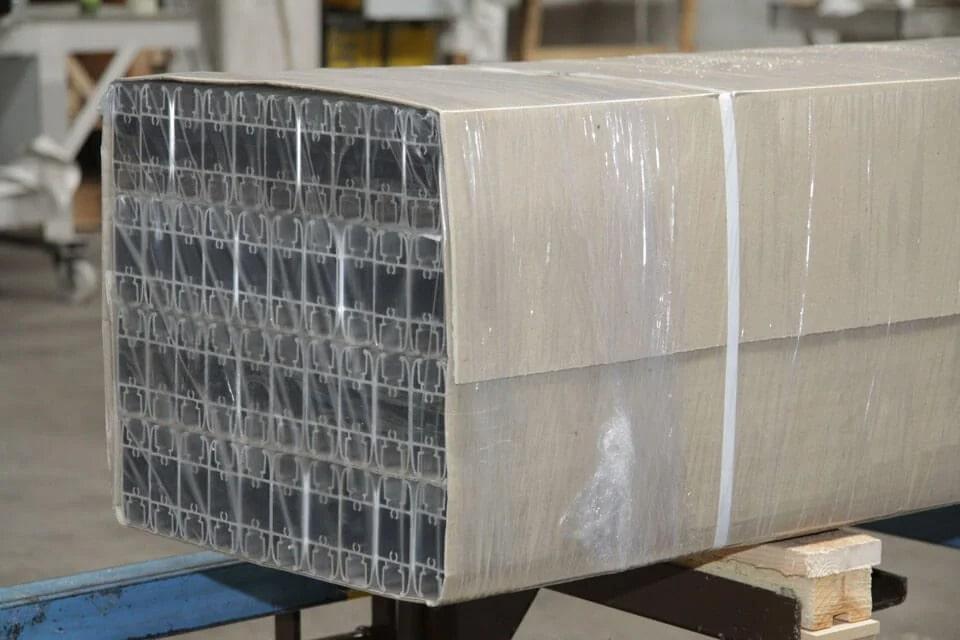

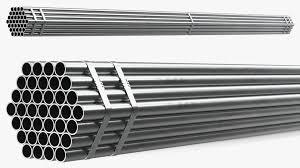

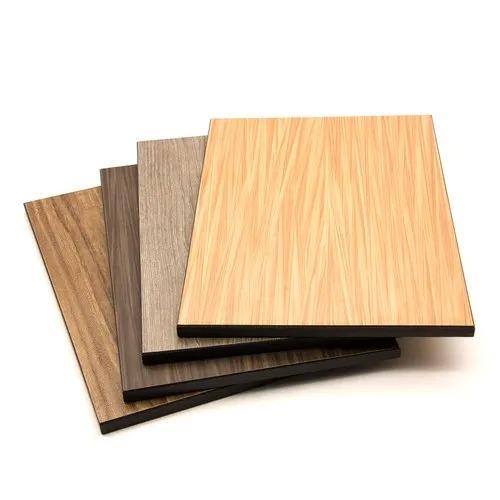

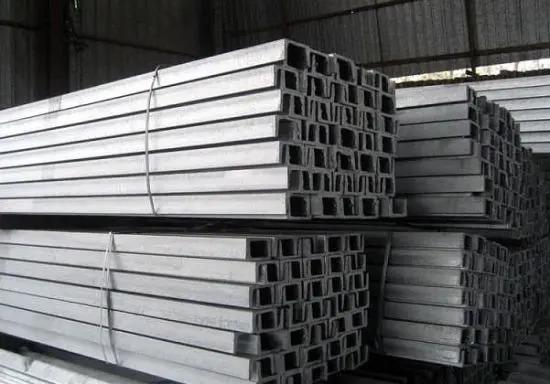

It uses stretch film material to tightly wrap products such as pipes, aluminum sections, panels, rods, doors, furniture profiles, textiles rolls, and more.

This machine provides consistent wrapping quality, saves material, reduces labor costs, and boosts packaging speed — making it ideal for industries like construction materials, furniture, textiles, automotive parts, and extrusion profiles manufacturing.

With robust construction, user-friendly controls, and adjustable parameters, the machine ensures flexibility for wrapping products of various sizes and lengths with minimal operator involvement.



Wrapping Operation Process of Automatic Ring Stretch Wrapping Machine

The operation of the machine is streamlined for maximum efficiency. Here’s how it typically works:

1. Product Feeding

• The product (e.g., a pipe, profile, or panel) is fed manually or automatically onto the infeed conveyor.

• The product is positioned centrally to ensure smooth wrapping.

2. Film Attachment

• The operator (or automatic arm) attaches the stretch film to the beginning of the product.

• Some models feature automatic film clamping systems.

3. Setting Wrapping Parameters

• Set the wrapping parameters through the machine's touchscreen control panel.

• Parameters include ring rotation speed, conveyor speed, film tension, overlap ratio, and number of layers.

4. Wrapping Cycle Start

• Once settings are confirmed, the "Start" button is pressed.

• The ring (with film roll) starts rotating horizontally around the stationary or moving product.

• Simultaneously, the conveyor moves the product forward through the rotating ring.

5. Film Stretching and Overlapping

• The machine maintains consistent film stretching and overlap to ensure a tight, secure wrap without damaging the product.

• Adjustable tension controls optimize material usage and product protection.

6. Wrapping Completion

• Once the product reaches the end of the conveyor, the machine automatically stops.

• The film is cut either manually or automatically (if equipped with an auto-cut system).

• The product is now fully wrapped and ready for storage or shipment.

Key Features

• Automatic Film Clamping, Cutting, and Wrapping Options

• Adjustable Ring Speed and Conveyor Speed for Different Products

• Heavy-Duty Structure for Continuous Operation

• Low Stretch Film Consumption for Cost Savings

• Customizable Sizes Based on Product Dimensions

• User-Friendly Touchscreen Operation with Safety Systems

• Suitable for Heavy, Long, or Irregular Profile Wrapping

Customization Options

The machine can be tailored to meet specific customer requirements, ensuring flexibility and efficiency for various industrial applications.
